Automated Relay Test Reports: A 5-Minute Guide

I know the feeling of finishing a long day at a substation. Your legs are tired. You just want to go home. But then you look at your clipboard. You have hours of messy notes to turn into a professional report. This is where most engineers lose their patience.

Manual data entry is more than just a boring task. It is a major source of errors in our industry. One wrong decimal point can lead to a failed audit.

Today, we can do better. Using automatic relay test report software is no longer a luxury. It is a requirement for modern power system maintenance.

Why field engineers hate manual data entry

In the old days, we used paper and pens. We wrote down trip times and currents by hand. Back at the office, we typed these into Excel. This process is slow. It also makes it hard to track trends over time. If a relay fails later, finding that old paper report is a nightmare.

Digital documentation solves this problem. Most modern utilities now require electronic records. They want to see the actual test curves. They want proof that the secondary injection test was done correctly. Professional software captures this data directly from the source. This removes the "human factor" from the data entry process.

The shift toward digital substation commissioning documentation

Organizations like IEEE and CIGRE emphasize the importance of data integrity. In their technical papers, they often discuss the risks of poor record-keeping. Proper testing prevents false tripping. High-quality documentation proves your system is reliable.

When you use a secondary injection test report template, you follow a standard. This makes your work look professional to your clients. Whether you work for a utility or a service company, your report is your calling card. It shows you follow international standards for safety and precision.

How automatic relay test report software works

Modern software connects your PC to the test set. As the machine injects current, the software listens. It records the exact moment the relay trips. It then places that point on a graph. You do not need to draw anything yourself.

The Kingsine relay testing software guide shows how easy this is. The software includes a library of over 500 relay templates. If you are testing a Siemens or ABB unit, the settings are already there. Once you have selected the test template, add the test module and define the test points. Then you just click start. The software compares the results to the factory curve and marks the result as Pass or Fail instantly.

Five steps to generate a professional report

Efficiency is about having a clear workflow. Here is how I handle my reports in the field:

1. Select your relay model from the software library.

2. Connect your test set to the relay terminals.

3. Run the automated test sequence for different fault types.

4. Review the generated curves on your screen.

5. Click the export button to save your PDF report.

This entire process takes less than five minutes after the testing is done. You can even email the report to your manager before you leave the site. This level of speed changes how you manage your workday.

Handy tools for faster testing

In my experience, hardware and software must work together perfectly. KINGSINE understand the field environment. Our tools like the KFA320 are very light. But the real magic is in the software ecosystem.

The software supports XRIO and RIO files. This means you can import settings from different manufacturers easily. You do not need to spend an hour setting up the test parameters. KINGSINE offers a high level of precision at a very fair price point. It gives you the same professional results as much more expensive brands.

One feature I find very useful is the Test Center-Test Object module. It lets you preview the report framework before you even begin. This helps you clarify your goals before you inject any current.

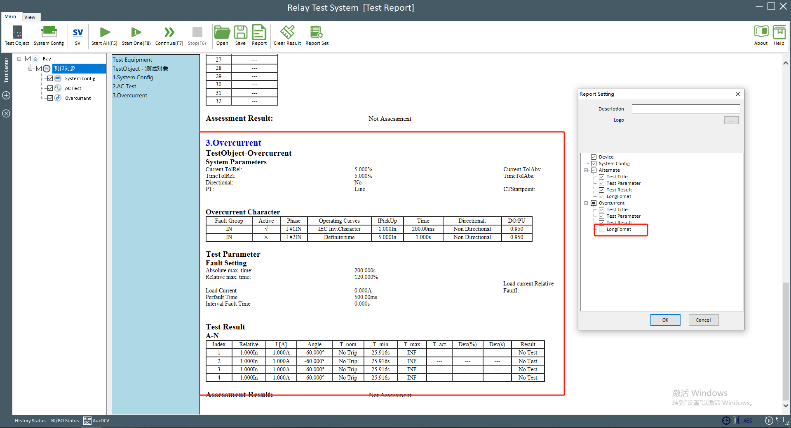

After the test, you can generate two report styles with one click. The Short Report focuses on core data for a quick review. This is perfect for a busy supervisor who needs the final result fast.

If you need to dig deeper, the Detailed Report offers a full look at the characteristic curves. It provides the visual evidence you need for fault tracing and system optimization. You can switch between these formats freely to balance your time and professional analysis.

Frequently Asked Questions about relay testing

What is the main benefit of automated software?

It eliminates manual entry errors and saves hours of office work.

Can I customize my test report template?

Yes. Most software allows you to add your company logo and specific site details.

Does automatic testing work for old electromagnetic relays?

Absolutely. You can set up manual test points and the software will still log the results.

Is digital documentation required by law?

It depends on the region. However, most major utilities now make it a contractual requirement.

Using the right automatic relay test report software makes our jobs easier. It keeps the lights on and keeps our data clean. If you are still using a pen and paper, it is the good timing to consider upgrading your kit. Reach out today!
