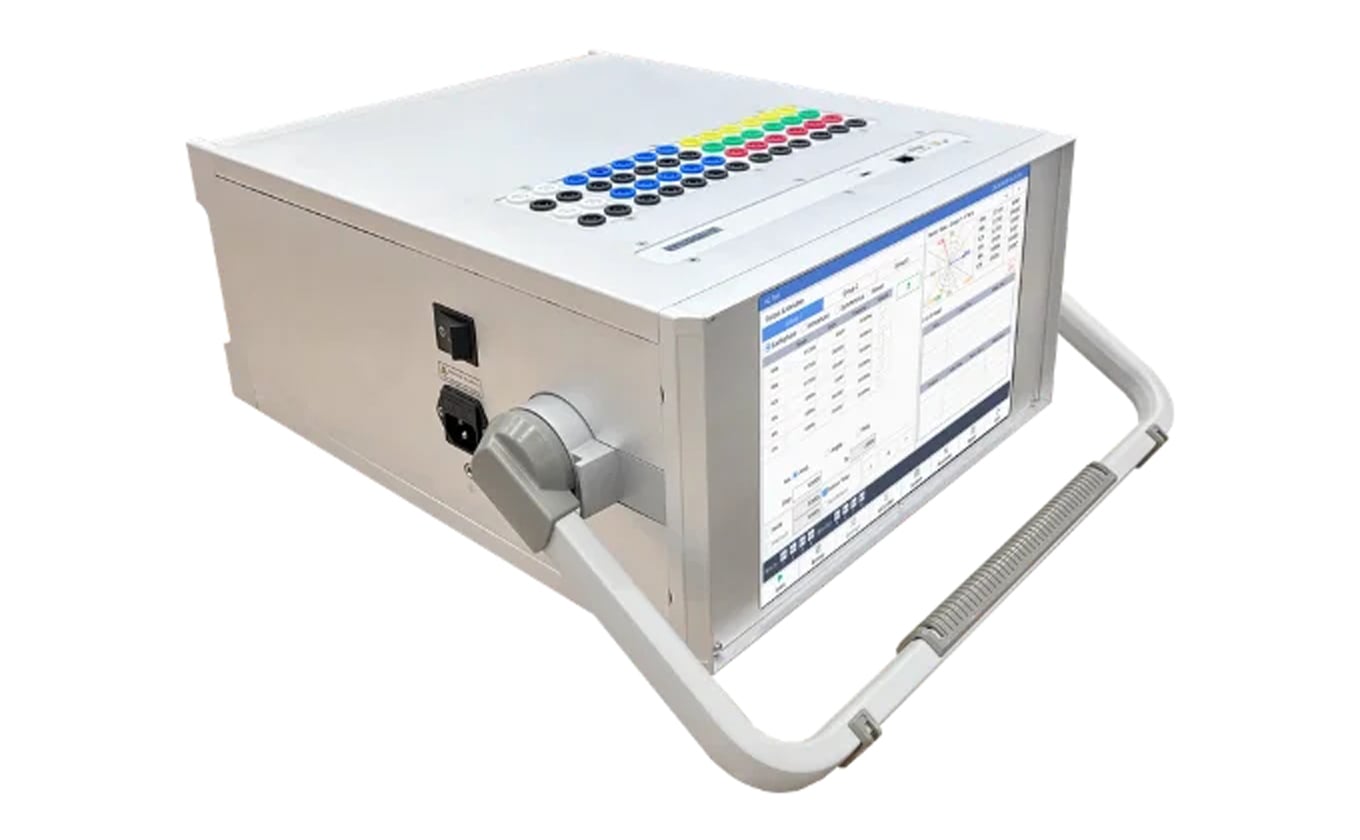

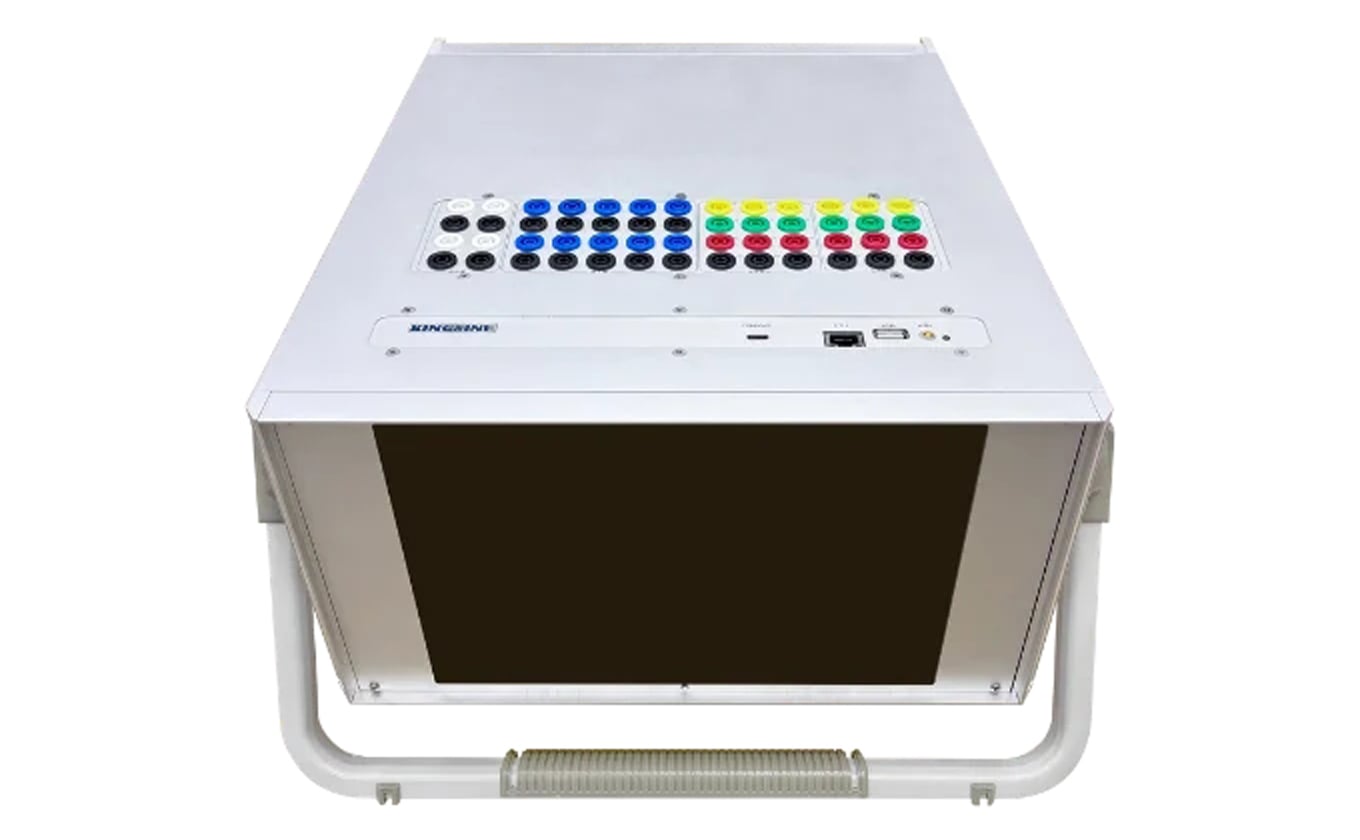

KINGSINE K2099 Protection Relay Test Set

Name: K2099 Protection Relay Test Set
Brand: Kingsine Electric Automation Co.,Ltd.

● Configurable 9-phase voltage and current output. (up to 18-channel simultaneous output)

● 9 × 40 A @ 424 VA max & 9 × 310 V @ 105 VA max analog outputs.

● Under 15 kg weight, easy to carry.

● Ever-expanding test library templates.

● High-precision and powerful 9-phase relay test set and commissioning tool.

Get A Quote

Description

Specifications

Optional

Basic Functions

The K2099 universal relay test kit is a multipurpose, field-portable secondary injection test kit. It is capable of testing a wide variety of electro-mechanical, solid-state, and microprocessor-based protective relays, motor overload relays, and similar protective devices, as well as performing IEC61850 testing.

1. Features analog signal capabilities (9-phase voltage and 9-phase current).

2. Equipped with a built-in dual-core industrial PC and a high-capacity SSD, it runs an embedded Linux operating system and features a 10.1-inch true-color LED LCD screen (1280×800 resolution) with capacitive touch control. It supports both standalone and PC-connected operation.

3. Portable design: Compact and lightweight, with a total weight of less than 15 kg, making it suitable for on-site testing.

4. High output accuracy: Voltage and current output accuracy is better than 0.05%, and DC output accuracy is better than 0.05%.

5. Utilizes the Linux operating system and touchscreen controls.

▪ Fully functional KRT software for test management, graphical test modules, template organization, Xrio/Rio import/export, testing result review, auto result assessment, and report generation, etc.

▪ Transient playback up to 3 kHz

▪ 4 × 100/1000 Mbps fiber ports for IEC 61850 SMV and GOOSE simulations

▪ Built-in GPS and IRIG-B synchronized end-to-end testing capability

▪ 10 binary inputs, dry contacts or 0–300 V potential contacts capability; 4 fast binary outputs, each isolated and with < 1 ms response time

▪ Anti-clipping detection, wrong wiring connection alarm, self-protection, and overload and overheat protection

▪ AC 85–265 / DC 127–350 power supply, worldwide range power supply compatibility

▪ 3-year free warranty and lifelong maintenance

▪ Free software upgrades

Advanced Features

▪ Compliant with IEC 61850 edition 1.0 & 2.0 & 2.1 standard

▪ 8 Low-level analog outputs (8 Voltages) up to 10V max.

▪ Optional with energy meter calibration

▪ Optional with transducer calibration

▪ 500+ templates of protection relays

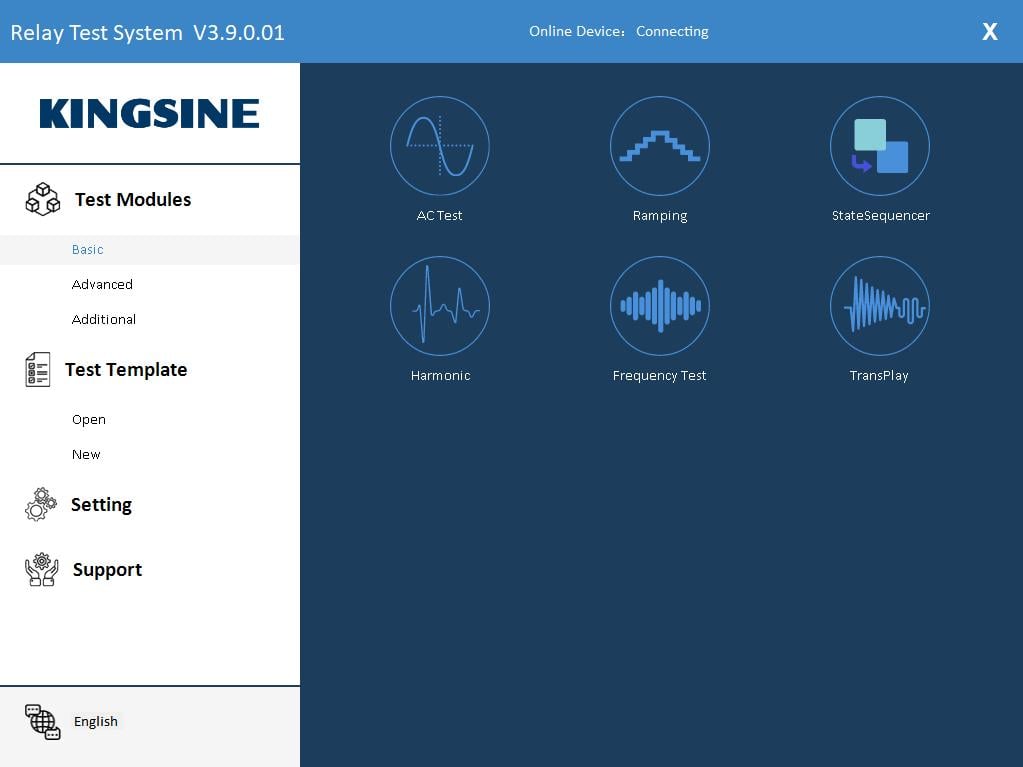

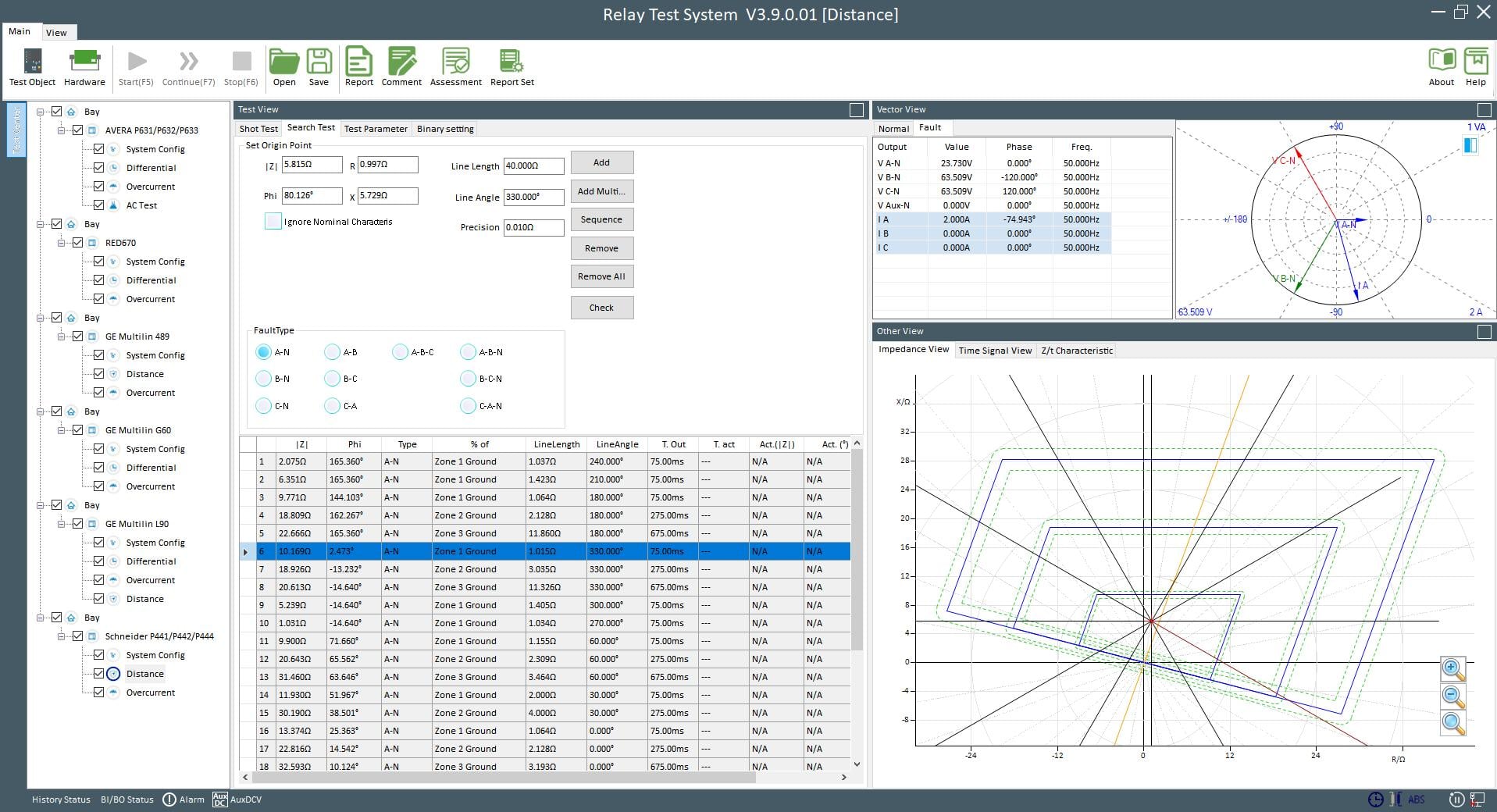

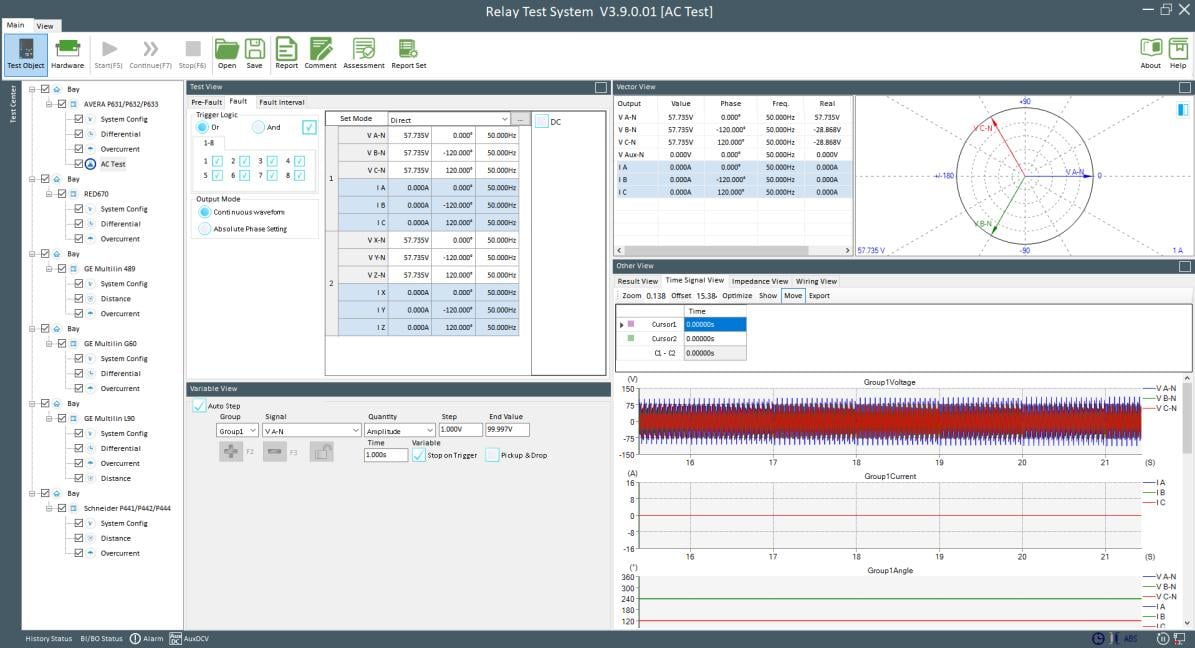

Graphical software interface:

AC current source
Amplitude & Power	9×40A @ 424VA max each;
Accuracy	<0.03%Rd+0.02%Rg Guar.
Range	Range I: 4A Range II: 40A Automatic Range
DC Offset	<3mA Typ./ <10mA Guar
Resolution	1mA
Distortion	<0.025%Typ. / <0.07% Guar.
Slew rate	<100us
DC Current source
Amplitude & Power	3×20A @ 400W max
Accuracy	±5mA @ <1A ±0.2% @ ≥1A
Slew rate	<100us
AC voltage source
Amplitude & Power	9×310V @ 105VA max each
Accuracy	<0.03%Rd+0.02Rg Guar.
Range	Range I: 31V Range II: 310V Automatic Range
DC Offset	<10mV Typ./ <60mV Guar
Resolution	1mV
Distortion	<0.015%Typ. / <0.05% Guar.
Slew rate	<100us
DC Voltage source
Amplitude & Power	9×350V @ 100W max
Accuracy	±10mV @ <5V ±0.2% @ ≥5V
Slew rate	<100us
Frequency & Phase Angle
Frequency Range	DC ~ 1000Hz, 3000Hz transient
Frequency Accuracy	±0.5ppm
Frequency Resolution	0.001Hz
Phase Range	-360°~360°
Phase Accuracy	<0.02° Typ. / <0.1° Guar. 50/60Hz
Phase Resolution	0.001°
Auxiliary DC Supply (Battery Simulator)
Range	12 ~ 350Vdc
Power	>70W max
Accuracy	1% Rg Guar.
Binary input
Electrical isolation	10pairs of electrical isolated each
Input impedance	5 kΩ…13kΩ（Empty contact）
Input feature	0 V～300Vdc Or dry contact
Time resolution	100us
Time measurement range	infinity
Time accuracy	±1ms @ <1s ±0.1% @ ≥1s
Debounce time	0~25ms (Software controlled)
Binary Output
Quantity	4 pairs
Type	Fast speed transistor, programmable software control
AC break capacity	Vmax：250V（AC）/ Imax：0.5A
DC break capacity	Vmax：250V（DC）/ Imax：0.5A
Time Synchronization
Satellite synchronization	1 × SMA，Use for GPS antenna interface Support GPS and Beidou Satellite
Precision time protocol	IEEE1588
Fiber IRIG-B	2 × ST，1 for transmission, 1 for receiving（Optional）
Sync error	<1us
Communication interface
Ethernet	1× RJ45 ，10/100M
WIFI	Built-in Wi-Fi with DHCP
Serial port	1 × RS232
USB	2 × USB2
Weight & Size
Size	439×362×197mm
Weight	15kg
Display	10.1inch LCD, touch screen
Power supply
Nominal voltage	220V/110V (AC)
Allowable voltage	85 - 265 VAC ;127V～350V(DC)
Nominal Frequency	50Hz/60Hz
Allowable Frequency	47-63Hz
Current	10A max
Connection Type	Standard AC socket 60320
Working environment
Operating temperature	-10～+55 ℃
Relative humidity	5～95%，Non-condensation
Storage temperature	-20℃ ~ +70℃
Atmospheric pressure	80kPa～110 kPa（altitude 2000m or lower）

(Optional modules)

IEC61850 functions:

▪ Fully compliant with IEC 61850 Sampled Values (SV) and GOOSE; (IEC61850-9-1, IEC61850-9-2/(LE), IEC60044-7/8)

▪ Able to simultaneously output sampling value and analog signals, or subscribe to and publish GOOSE messages and relay contact binary I/O functions.

▪ Up to 36 sampled value channels can be mapped.

Fiber port (LC type)
Type	100Base-FX (100Mbit,Fiber, full duplex)
Port Number	4 Pairs
Cable model	62.5/125μm(Multiple-mode fiber, orange)
Wave length	1310nm
Transmission distance	> 1Km
Status indication	SPD Green (lights): active connection Link\AcT Yellow (blinking): data exchange

8 Low-Level channels signal output function:

Low-level signal output
Output channels	8 channels
Output port type	Phoenix terminal
Output range	8x0~8Vrms;
Accuracy	(0.01~0.8 Vrms):<0.05% Typ. / <0.1% Guar. (0.8~8 Vrms): <0.02% Typ. / <0.05% Guar.
Resolution	250µV
Harmonic(THD%)	< 0.05% Typ. / <0.1% Guar.
Frequency range	DC～1.0kHz, transient 3KHz
Frequency accuracy	0.002%（Normal frequency）
Frequency resolution	0.001Hz
Phase range	0～359.9°
Phase accuracy	<0.02°，50/60Hz
Phase resolution	±0.001°

Transducer Calibration Function:

DC Measurement Input
Voltage Input	Range	0~±10V dc
	Max Input	±11V dc
	Accuracy	Accuracy <0.05% rg Typ. <0.02% rg Guar.
	Input Impedance	1M ohm
Current Input	Range	0~±1mA / 1~±20mA, auto range
	Max Input	600mA
	Accuracy	<0.02% rg Typ. <0.05% rg Guar.
	Input Impedance	15 ohm

Energy Meter Calibration Function:

Energy Meter Calibration
Sensor Usage	Mechanical meters / Electronic meters
Sensor Output	High lever:>4.5V, Low level:<0.2V
Pulse Input	1 pulse input port, 5Vdc high level valid only.
Pulse Range	500KHz pulse input Max.
Pulse Output	1 Transistor output, Open-collector, 5Vdc/5mA
